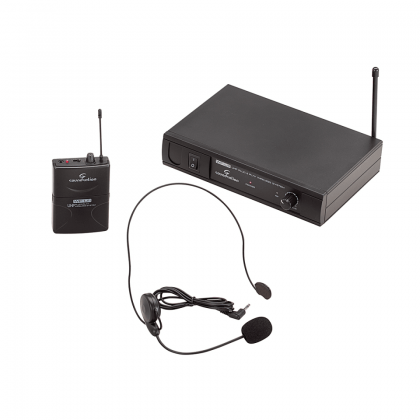

SOUNDSATION WF-11 is the answer to all those who need a reliable, high-quality sound, and easy to use wireless microphone system. Ideal in educational, Portable Sound, Public Address, and DJ contexts, the WF-11 impresses with its brilliant and warm sound, thanks to the quality of components and the capsule designed for all application.
Specifikacija:
- UHF Transmission with SMD Technology
- 4 available Frequencies in free-license ISM Europe Band
- Simple user Interface for plug and play setup
- 30m ideal distance (without obstacles)
- Strong yet lightweight bodypack with professional headset microphone
-
Carrier FrequencyUHF 863-865MHz
-
Available Frequencies863.05 MHz, 864.15 MHz, 863.55 MHz, 865.00 MHz (WF-U11PC Freq. is 864.15 MHz)
-
Frequency StabilizationAutomatic calibration
-
Dynamic Range> 90dB
-
Total Harmonic Distortion< 0.5%
-
Frequency Response40 – 18500 Hz / ±3dB
-
Packing Dimensions (WxHxD)436 x 104 x 324 mm
-
Packing Gross Weight2.0 kg
-
Power SupplyDC12V, 400mA
-
Consumption< 4W
-
Signal/Noise Ratio> 95dB
-
Border Upon Channel Rejection> 80dB
-
Receiving Sensitivity10dBuV
-
De-Emphasis75uS
-
Audio Output LevelBalanced 400mV; Unbalanced 400mV
-
Dimensions (WxHxD)211 x 43 x 115 mm (antennas not incl.)
-
Antenna120 mm (not bent)
-
Net Weight0.295 kg
-
Transmitter Power10mW
-
Modulation TypeFM
-
Deviation37KHz
-
Spurious Emission> 30dB
-
Battery Voltage3V (2x1.5V AA-Type Batteries)
-
Continuous Using5 hours
-
Pocket Trans. Dimensions (WxHxD)62 x 103 x 30 mm
-
Antenna (W/DxH)Ø3 x 9 mm
-
Pocket Transmitter Net Weight0.132 kg (batteries included)
