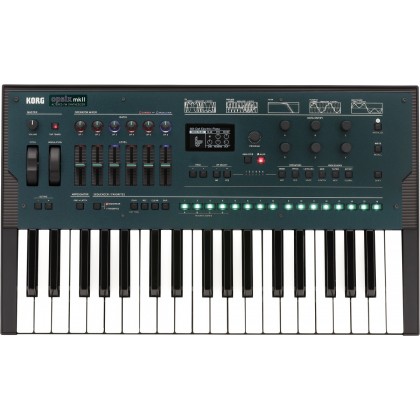

Korg Opsix mk II is a digital synth like no other. Based on the sound engine of the original opsix, the number of simultaneous voices and voicings has been expanded to an astounding 64 voices. The result is superior performance and precise control.
The opsix Operator Mixer simplified FM synthesis for the first time, making it not just comprehensible but also controllable. With the addition of extra synthesis capabilities and programming, it offered a more efficient workflow and an even richer sound.
And, it is fully compatible with the sounds and samples from both the original opsix and the opsix Native software, including numerous high-quality libraries.
- Keyboard
- 37 keys (velocity and release-velocity sensitive)
- Sound generating system
- Altered FM sound generator
- Maximum Polyphony
- 64 voices (varies depending on the setting)
- Structure
- .
- 6 operators, 1 filter, 3 EGs, 3 LFOs, 3 effects, step sequencer, arpeggiator
- Algorithm
- 40 presets + user algorithm (unique to each program)
- Operator
- 6 modes (FM, Ring Mod., Filter, Filter FM, Wave Folder, Effect)
- Oscillator waveform
- 23 waveforms (Sine, Sine 12bit, Sine 8bit, Triangle, Saw, Saw HD, Square, Square HD, Additive Saw3, Additive Sqr3, Additive Tri3, Additive 12345, Additive 1+2, Additive 1+3, Additive 1+4, Additive 1+5, Additive 1+6, Additive 1+7, Additive 1+8, Noise S/H, Noise White, Noise Pink, Noise Blue)
- Filter
- 11 types (LPF 12, LPF 24, LPF MS-20, LPF POLY6, HPF 12, HPF 24, HPF MS-20, BPF 6, BPF 12, BRF 6, BRF 12)
- EG
- ADSR
- LFO
- 23 waveforms (Triangle, Saw Down, Saw Up, Square, Sine, Sample&Hold, Guitar, Exp. Triangle, Exp. Saw Down, Exp. Saw Up, Step4 Triangle, Step6 Triangle, Step4 Saw Down, Step6 Saw Down, StepRnd:Time, StepRnd:Lvl&Time, StepRnd:Level, Random:Time, Random:Lvl&Time, Triangle + , Saw Down + , Saw Up + , Square +)
- V.Patch
- 12 routings
- Effect
- 30 types (Chorus, Unison Ensemble, Phaser, Phaser (BPM) , Auto Pan, Auto Pan (BPM), Flanger, Flanger (BPM) , Rotary Speaker, Auto Wah, Exciter, Enhancer, LFO Filter, 3-Band EQ, Distortion, Guitar Amp, Decimator, Grain Shifter, Master Limiter, Compressor, Delay, Delay (BPM) , Autopan Dly, Autopan Dly (BPM), Tape Echo, Tape Echo (BPM) , Early Reflection, Reverb, Shimmer Reverb, Spring Reverb)
- Sequencer
- Step Sequencer (up to 16 steps, up to 6 notes per step)
Motion Sequencer (up to 6 lanes)
- Arpeggiator
- 7 patterns (MANUAL, UP, DOWN, ALT1, ALT2, RANDOM, TRIGGER)
- Number of programs
- 500 (350 preset programs and 150 user programs as the factory-set default)
- FAVORITE
- 64 (16 Slots × 4 Banks)
- Controllers
- MODULATION wheel, PITCH wheel, RATIO OP 1–6 knobs, LEVEL OP 1–6 sliders, DATA ENTRY A–F knobs
- Inputs/outputs
- Headphone (6.3 mm stereo phone jack)
- OUTPUT L/MONO and R (impedance-balanced 6.3 mm TRS phone jacks)
- DAMPER (6.3 mm phone jack, half-damper not supported)
- MIDI IN and OUT connectors
- USB B port
- Power supply
- AC adapter (DC12V)
- Power consumption
- 5 W
- Dimensions (W × D × H)
- 565 × 338 × 90 mm / 22.24" × 13.31" × 3.54"
- Weight
- 2.9 kg / 6.93 lbs.
- Included items
- AC adapter
- Accessories (sold separately)
- DS-1H damper pedal, PS-1 pedal switch, PS-3 pedal switch
